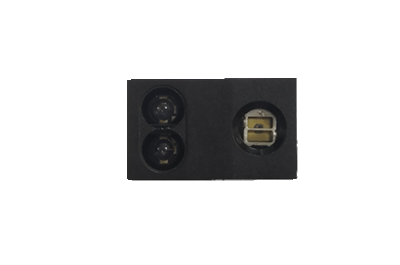

Gesture Photoelectric Switch

        System-level gesture photoelectric switch is controlled by microprocessor (MCU). It can be meet the application requirements and use scenarios for different customers. This product integrates infrared receiver, transmitter, MCU, signal processing unit and output control unit. It has strong anti-photoelectric interference ability, stable and reliable performance and small size.

        The dimensions of this product can be customized according to customer requirements.


Instructions
Share To:
Gesture Photoelectric Switch · Product Features
1、Volume:
14mm×8.5mm×3.75mm;
2、Sensing distance:
2-20cm,High sensitivity;
3、Light immunity:
Strong immunity to ambient light;
4、Signal output:
A variety of logic output signals are possible
Application Products Video Presentation
Product Main technical parameters

Main Parameter

Numerical Value

Unit

Remarks

Operating Voltage (DC)

3.0-5.5

V

Recommend: VDD=3.3V-5.0V

Infrared Wavelength

940

nm

IF=20mA

Signal Output Mode

Low level pulse signal

/

On standby: when pin signal is triggered by high level VDD: when IRED1IRED2, it is input Output 500us low-level pulse signal; Output when IRED2IRED 1500us low level pulse signal; (customizable)

Output Drive Current

10.0

mA

Test condition: VDD=5.0V

Outline Dimension

L*W*H   14*8.5*3.75

mm

/

Port

8Pin

mm

8 Patch pin

Inductive Distance

d=2-20

cm

Test conditions: VDD=5VPanel transmittance ≥ 80%; See test method for details; When transparent glass or infrared panel is set in front of the sensor, the distance between the sample and the panel is ≤ 1 mm

Gesture Swing Amplitude

20

cm

Test conditions: at the induction distance of 20cm



Application Area

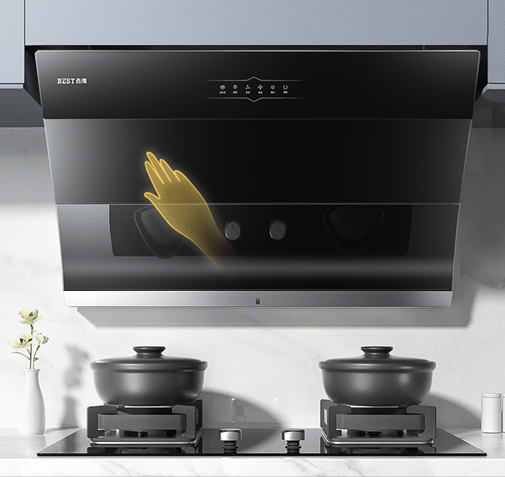

This product is suitable for various household appliances, such as multi-gesture logic function control, lighting fixture switch and brightness control, display backlight control, toys, intelligent trash cans, object motion direction recognition and other
Gesture water dispenser
Intelligent cigarette machine

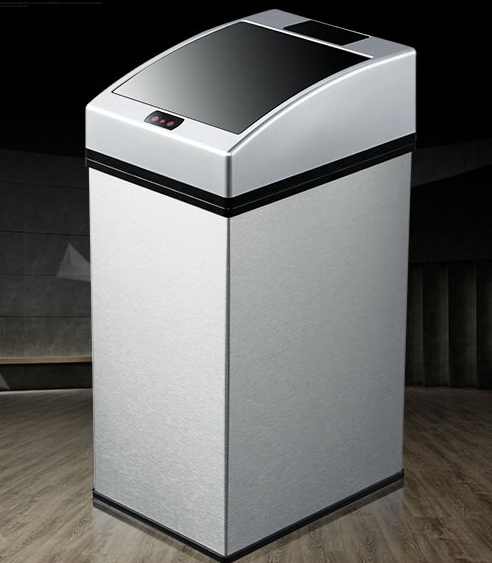

Intelligent garbage can
Backlight display control
